STM32-F103 (Blue pill) with simple FOC

Introduction​

This is working demo with Simple FOC Aruino library with Blue pill.

Hardware​

  • Blue pill STM32F103 (128kb needed for FOC lib size over 60kb)
  • MT6701 Encoder
  • BLDC motor
  • USB external serial port
  • STlink v2 or v3 for code upload

Wire Tips​

  • 3 BLDC wire should be PWM enable and also in same time group.
  • Encoder ABZ wire should also in a single group.
  • STlink and serial is optional but is helpful in dev process.

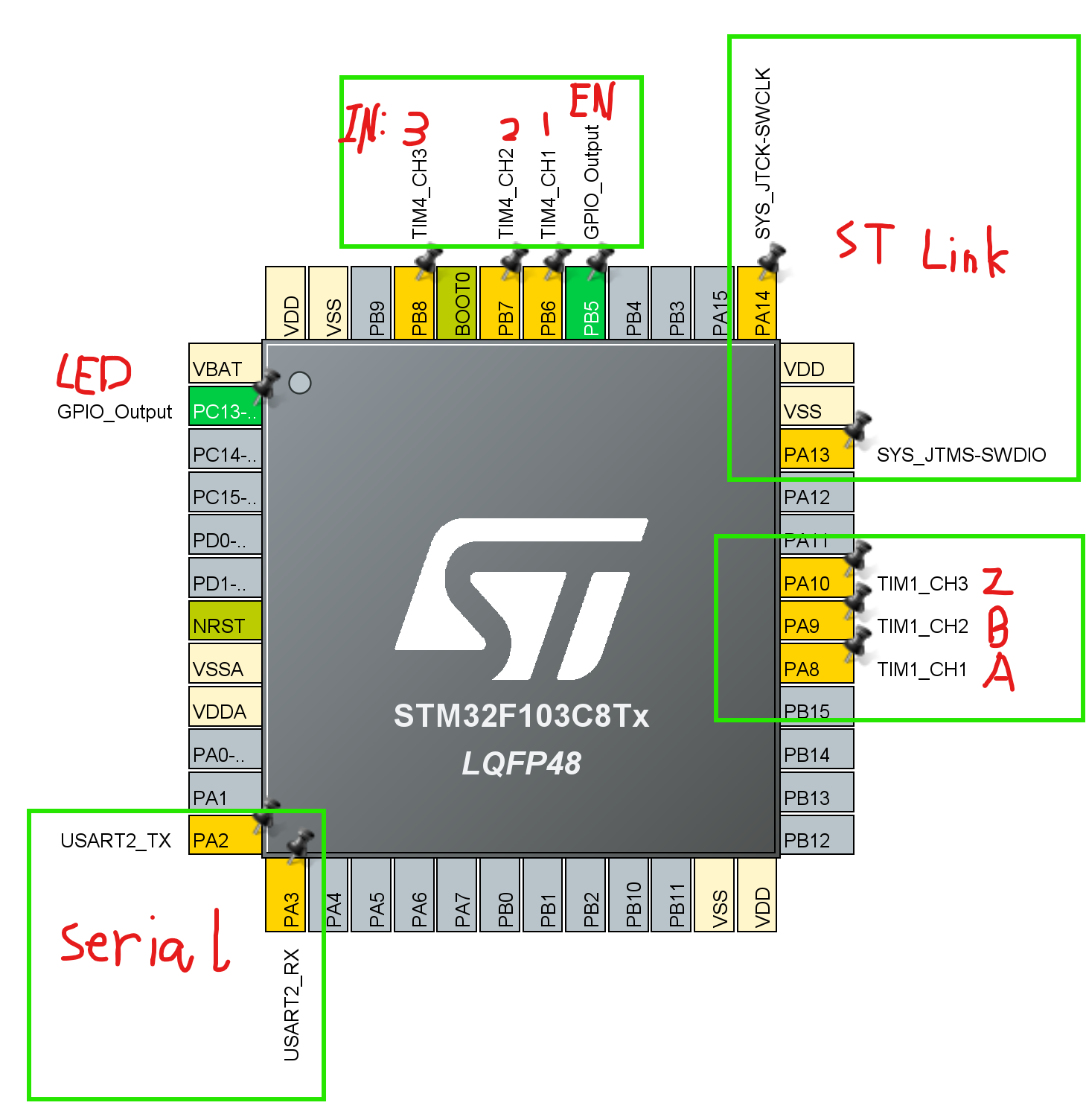

Blue pill pin out: Example diagram

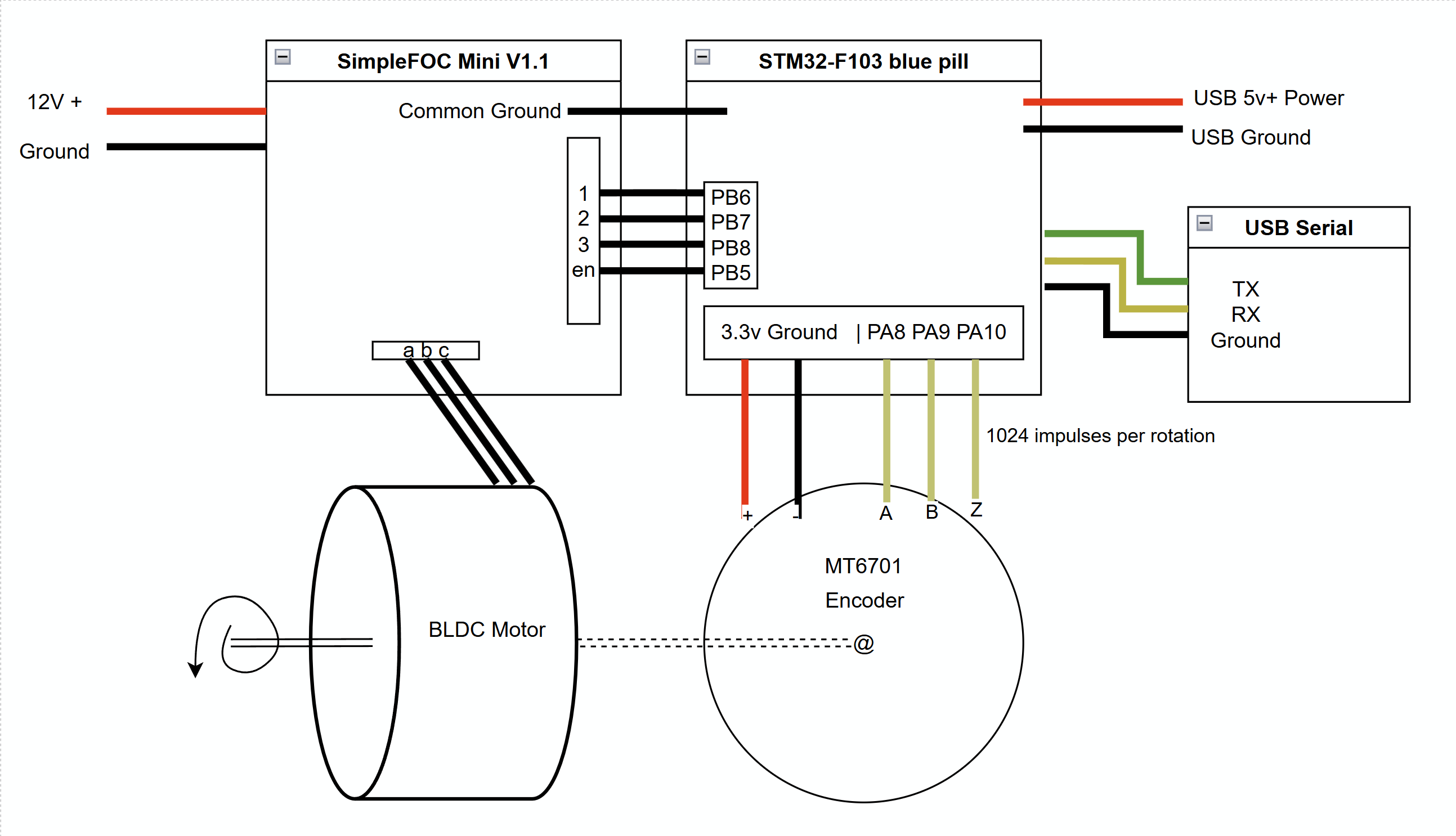

Wire Diagram: Example diagram

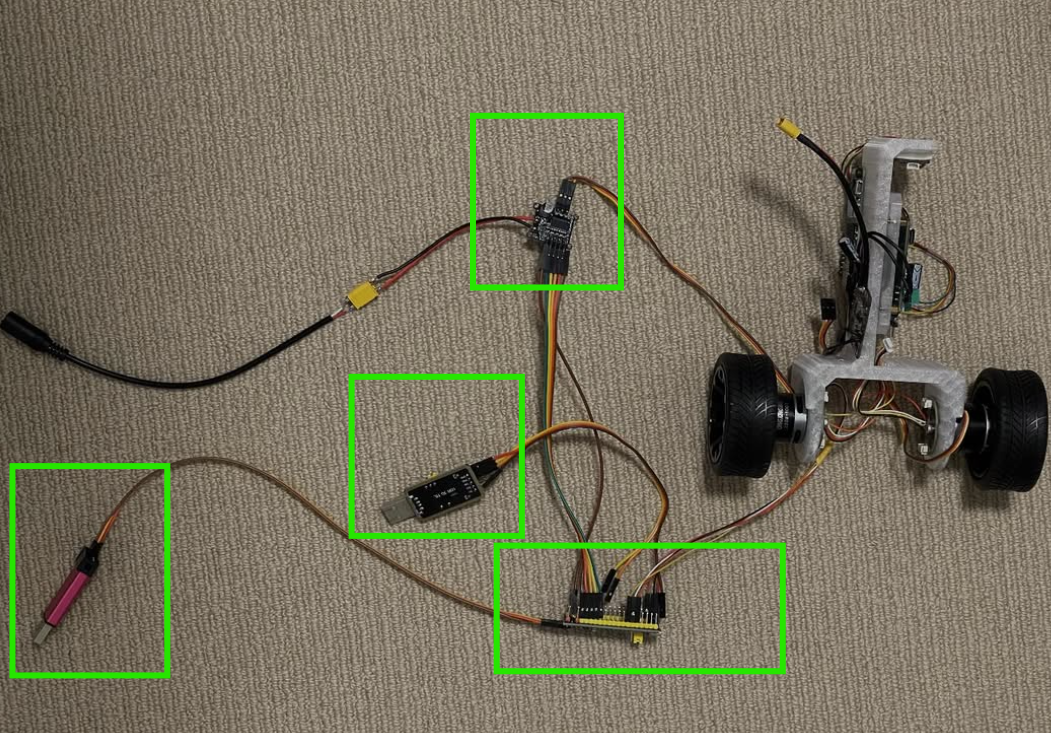

Demo: Example diagram
